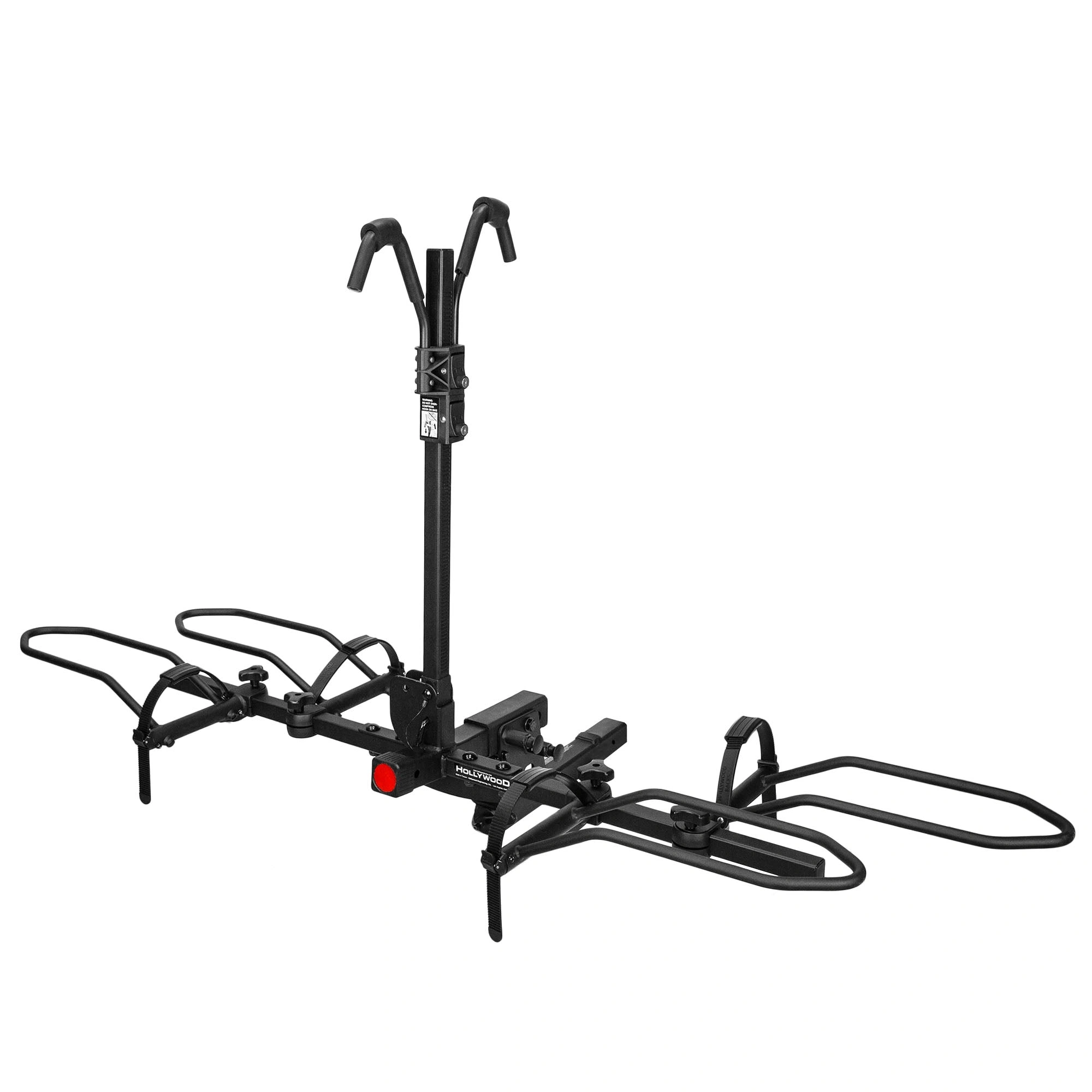

Sport Rider Bike Rack
The Sport Rider Bike Rack for Electric Bikes is our hitch bike rack designed specifically to carry electric bikes with any sized tire up to 5' wide. This bike rack can carry up to 2 electric bikes or standard bikes. If you're looking for an e-bike rack that works with bikes with fenders, look no further than the Sport Rider SE for Electric Bikes.
This durable, strong bike rack includes new universal extra heavy-duty wheel holders for heavy load-carrying capacity. As with the Sport Rider SE, this hitch-mounted bike rack can fold flat against the car when not in use and can be tilted for easy access to the cargo area. Also includes a keyed-alike locking hitch pin, 8' security cable, and locking frame to keep your rack and bikes secure during travel. Features patented No Wobble-No Tools Hitch Tightening System. For 2' hitches only.
Specifications
- Capacity: Two Bikes (Max. 80 lbs per bike)
- Hitch Size: 2” only (Do not use a 1 ¼” -2” hitch adapter)
- Maximum bike wheelbase: 60”
- Minimum wheelbase: 36'
- Maximum tire width: 5”

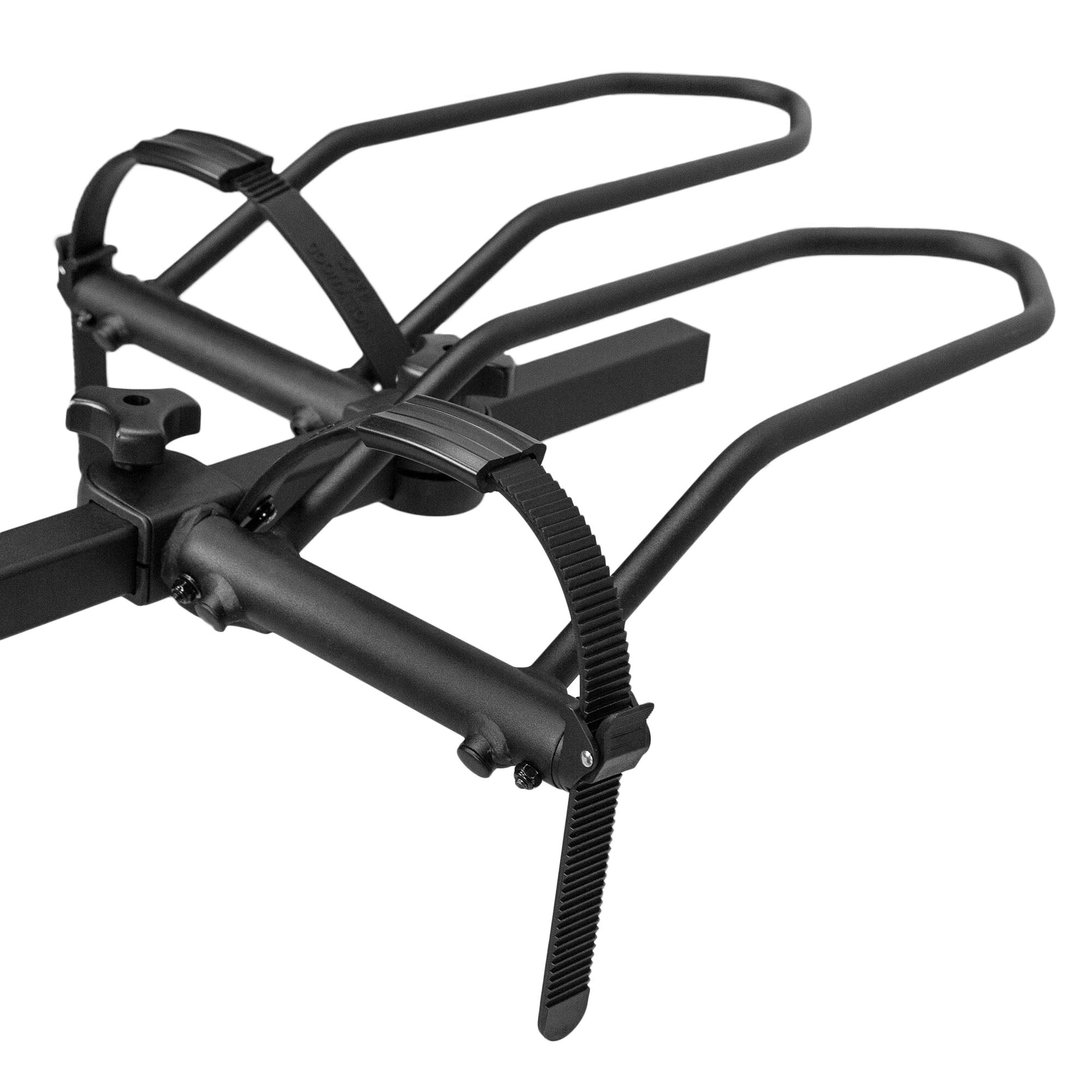

- Features extra heavy duty wheel holders (Now with ratchet straps and rim protectors), an internally reinforced frame, and an external brace for heavy load carrying capacity
- Includes keyed-alike locking hitch pin, 8’ security cable, and locking frame hooks
- Patented “No-Wobble Hitch System' eliminates slack between the receiver and the rack without the use of tools

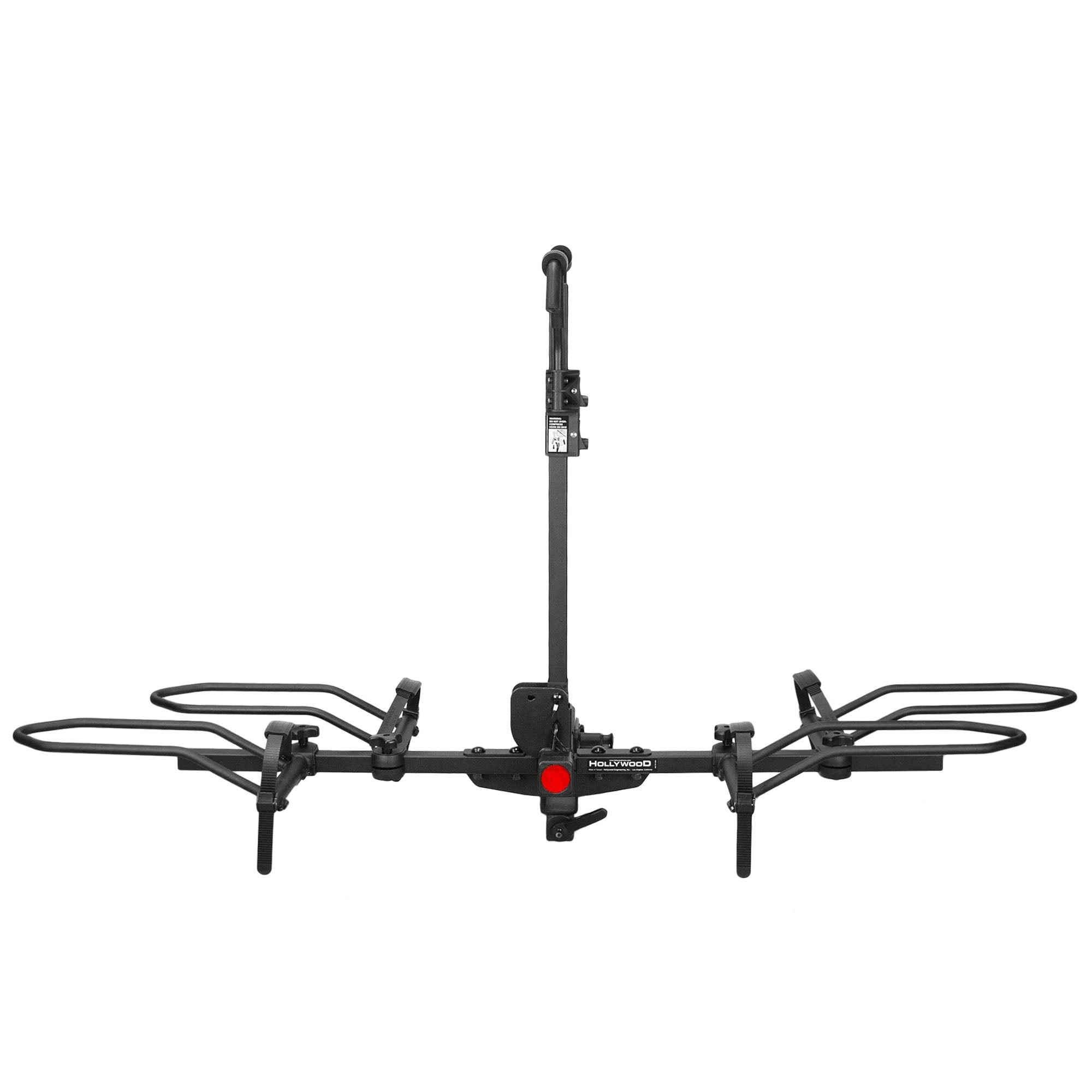

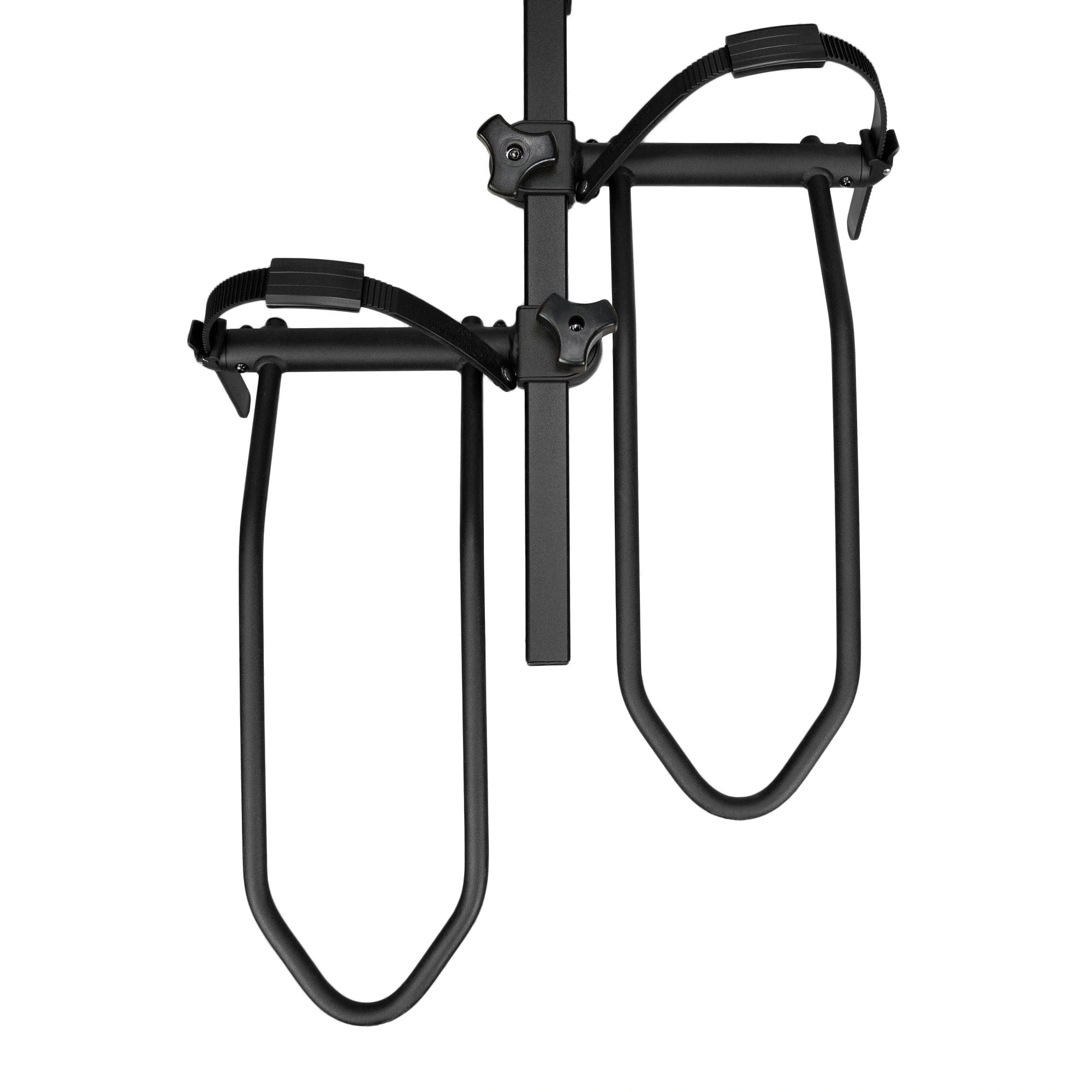

- Folds flat against car when not in use
- Tilts down for easy cargo door access
- Space between bikes: 10
- Now includes two Small Wheel Adapter (SW-ADP-U) for 20' Fat tire bikes rear wheels to prevent derailleur hanger interference (You will only need one per bike)
- For step-through bicycles you will need to also purchase a Bike Adapter
- Now includes a red safety strap to help secure the bikes to the central post and to each other
- Rack Weight: 58 lbs.
- Limited Lifetime Warranty
- Not to be used on front hitches
- Not to be used with a bike cover
- Not to be used with any 1-1/4' - 2' Adapter
- Not to be used with any Hitch Extension longer than 8'
- Not to be used on any travel trailer, fifth wheel or towed vehicle
Installation
Installation Video 2020- 2023 (HR1500)
No-Wobble Hitch System Video
Installation Video 2019 - 2020 (HR1450Z-E / HR1455Z-E)
Installation Instructions 2019 - 2023
Replacement Parts

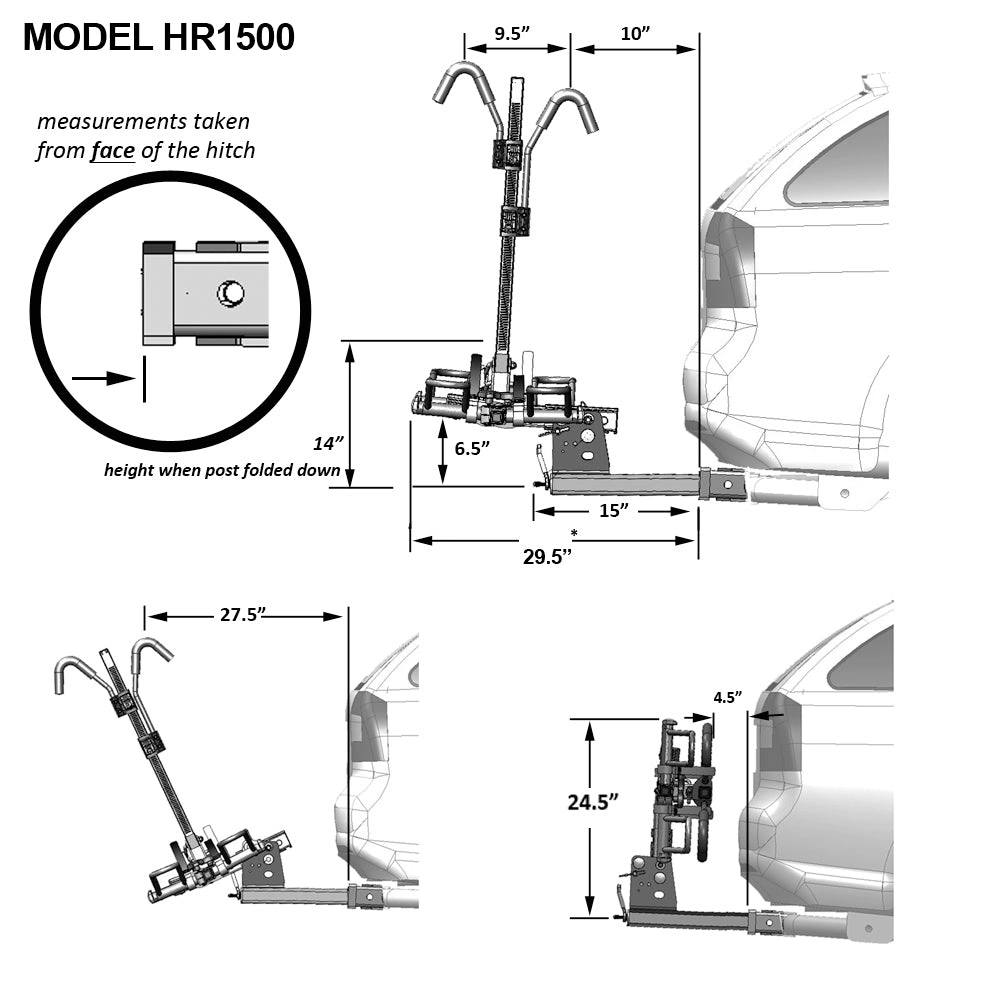

2021 -2023 Edition Replacement Parts: HR1500
2019 - 2020 Replacement Parts: HR1455Z-E
2016 - 2018 Replacement Parts: HR1455Y-E
2019 - 2020 Replacement Parts: HR1450Z-E
2016 - 2018 Replacement Parts: HR1450Y-E
